Portable Fiber Laser Marker Max Raycus 20w Fiber Laser Marking Machine Mini Laser Engraving Machine for Jewelry Cloth Metal

laser type : Fiber Laser

working accuracy : 0.001

Place of Origin : China

condition : New

configuration : Gantry Type

feature : Automated Loading

graphic format supported : AI, DXF

key selling points : Easy To Operate

Marking Depth : 0.5-2 mm

Marking Speed : 7000-12000 mm/s

mode of operation : Pulsed

warranty : 3 years

Weight : 20

Product name : Lazer Marking Machine

Laser Power : 20W /30w/ 50w(Optional)

Laser source : IPG Raycus Max JPT

MOQ : 1

Contact Now

Product Description

Features

1. Excellent light quality:

Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking. 2. Low usage cost: a. Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500w. It greatly saves the cost in power consumption. b. No consumable ink cost burden and eliminating the troubles of cleaning the inkjet printer nozzle everyday. 3. Free maintenance & long service life: Using laser diode as the source of pump, full sealing light path design, its no-failure operation can up to 100 thousand hours. 4. Fast process speed: Its processing speed is 5-10 times faster than traditional laser marking machine.

*Specification*
Item	Value
Model	HLFM-D20 / 30 / 50 / 70 / 100
Power	20w / 30w / 50w / 70w / 100w
Laser Type	Fiber Laser
Laser Source Brand	MAX / RAYCUS / JPT MOPA Optional
Galvanometer	SINO-GALVO RC1001 Upgradeable
Marking Area	7070mm / 110110mm / 150150mm / 200200mm / 300*300mm Optional
Minimun Line Width	0.01mm Depends on the material
Minimum Character	0.2mm Depends on the material
Compatible with Lightburn	Yes
Control Software	BSL/JCZ
Language	Chinese, Korean, Japanese, German, French, Arabic, Spanish, Portuguese, Vietnamese, Farsi, Russian, Thai, etc.
Graphic Format Supported	PLT, DXF, AI, BMP, JPEG, etc.
System Requirements	WIN7 and above
Cooling Mode	Air Cooling
Voltage Requirements	110-240V 50-60Hz
Net Weight	20KG

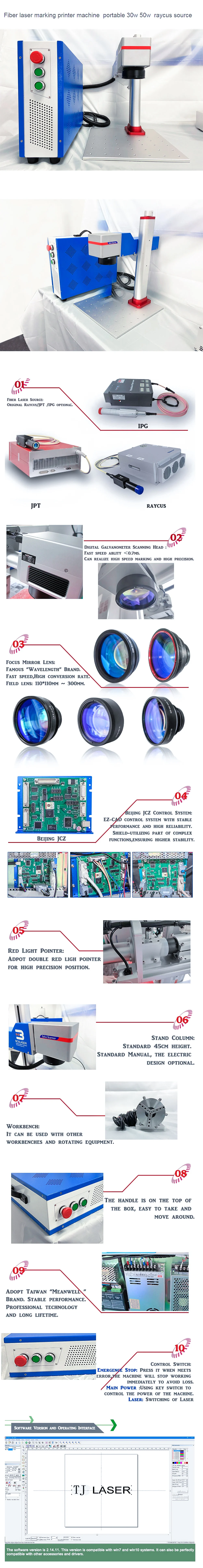

Portable Fiber Laser Marker Max Raycus 20w Fiber Laser Marking Machine Mini Laser Engraving Machine for Jewelry Cloth Metal Images
