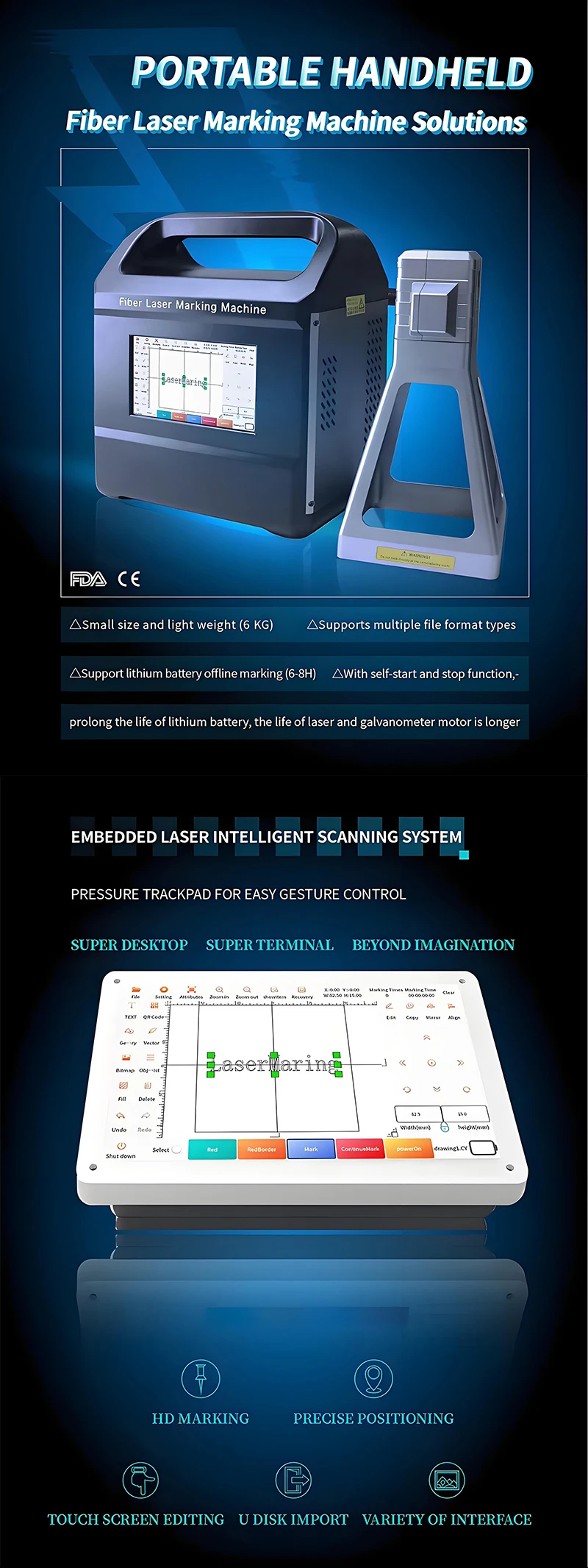

Portable Optical Handheld Fiber Laser Marking Machine New Mini Small Laser Marker for Metal Tyre Resin Supports DXF BMP AI

laser type : Fiber Laser

working accuracy : 0.001

Brand Name : hm

Place of Origin : Hubei, China

cnc or not : Yes

condition : New

configuration : HAND-HELD

control software : EZ CAD

control system brand : Beckhoff

Cooling System : AIR COOLING

feature : PORTABLE

graphic format supported : AI, DXF, BMP, Other

key selling points : Easy To Operate

mode of operation : Pulsed

warranty : 2 Years

Weight : 6

MOQ : 1

Contact Now

Product
Lithium Battery Style
Power Supply Style
Model
LMB20 / LMB30 / LMB50
LM20 / LM30/ LM 50
Laser Type
Optical Fiber Laser
Laser Power
20 / 30 / 50w
Laser Wavelength
1064nm
Max Pulse Energy
0.7mJ / 1mJ / 1.1mJ
Frequency Rang
27-170 kHz
Print Way
High-precision two dimensional scanning mode
Scaling Speed
≤ 7000mm/s
Operation Interface
Built-in 7-inch touch screen, Linux OS
Cooling Method
Built-in air cooling
Marking Line Type
Lattice and vector all-in-one machine (both lattice and vector)
Reflector Size
Standard: 10mm
Marking Scope
100mm*100mm
Location Mode
Red light positioning
Print Out Rate
600 character, or specific speed is related to product material, print content
Language
Simplified Chinese, English, German, Korean, Arabic, etc
Barcode / QR Code
CODE25/ 39/ 49/ 93/ 126/ 128, EAN13/ 128, PDF417, CODEBAR, UPCA, UPCA-CHK, UPCE-CHK, DataMatrix, QRCode, etc
File Format
PNG JPG BMP DXF PLT SVG
Source
220V / 110V
Max Power Consumption
20W: 120W / 30W: 150W / 50W: 200W
Net Weight
8.4KG
6KG
Power Work Time
6-8 Hours (Lithium Battery)
Temperature
0-40℃
Relative Temperature
30-80 RH (no-condensation)

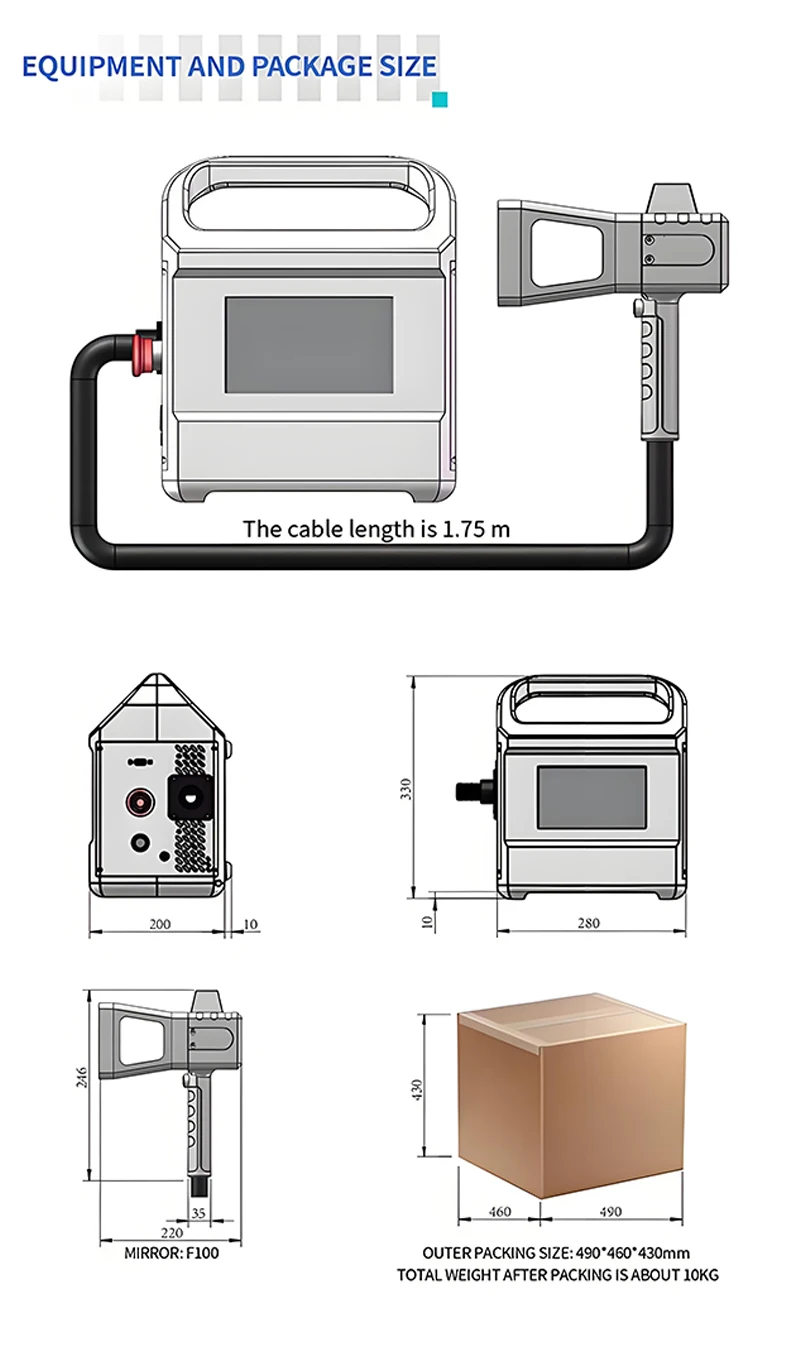

Appearance Size
330*280*200mm
Marking Type
QR Code, Bar Code, Chinese, English, Date, Logo, Pattern, etc

Portable Optical Handheld Fiber Laser Marking Machine New Mini Small Laser Marker for Metal Tyre Resin Supports DXF BMP AIPortable Optical Handheld Fiber Laser Marking Machine New Mini Small Laser Marker for Metal Tyre Resin Supports DXF BMP AIPortable Optical Handheld Fiber Laser Marking Machine New Mini Small Laser Marker for Metal Tyre Resin Supports DXF BMP AIPortable Optical Handheld Fiber Laser Marking Machine New Mini Small Laser Marker for Metal Tyre Resin Supports DXF BMP AIPortable Optical Handheld Fiber Laser Marking Machine New Mini Small Laser Marker for Metal Tyre Resin Supports DXF BMP AI

FAQ:
Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.
Q: What's your MOQ?
A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.
Q: Can I get discount?
A: The more you order, the more discount you will get.
Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.
Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.
