2025 New Laser Marking Machine for Jeans Manufacturing Supports Ai Bmp Plt Formats Gantry Type Configuration

Product Categories
Please input your companyname!
Contact Now

2025 New Laser Marking Machine for Jeans Manufacturing Supports Ai Bmp Plt Formats Gantry Type Configuration

Applicable Material : Glass, Paper

laser type : Fiber Laser

Brand Name : RAYCUS

Place of Origin : Hubei, China

cnc or not : Yes

condition : New

configuration : Gantry Type

control system brand : Other

cooling mode : Water Cooling

Cutting Speed : 7000mm/s

cutting thickness : 0.01MM

Feature : Water-Cooled

graphic format supported : AI, BMP, PLT, DXF, Dst, Dwg, LAS

guiderail brand : Other

Key Selling Points : High-Accuracy

laser head brand : Coherent

mode of operation : Pulsed

optical lens brand : Other

products handled : all non-metal materials

servo motor brand : Leadshine

warranty : 2 Years

Weight : 1480

Product name : 3D Dynamic CO2 Laser Marking Machine

Function : all non-metal materials

Lifespan of laser source : 20,000 hours

Marking Speed : 7000mm/s

Including : host machine, water chiller, exhausting system

MOQ : 1

Price : $42,000-48,000

Contact Now

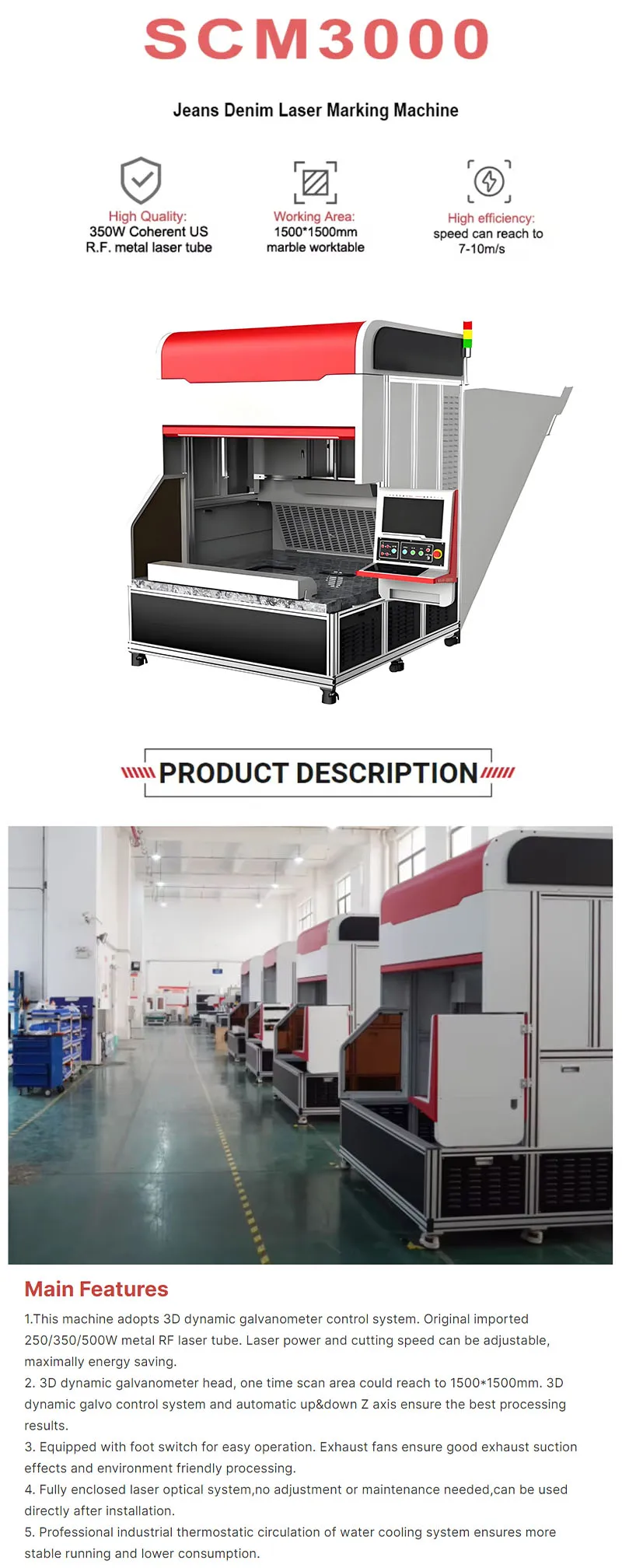

Model
SCM3000
Max working Area
1500x1500mm
Laser power
150W/250W/350W/500W
Power Consumption
≤ 7 kWh
Life Span
Over 20000 Hours
Marking Speed
≤10000mm/s
Worktable
MDF/Strip/Honeycomb Worktable
Laser Source
US Coherent RF Metal Laser Source
Laser Wavelength
10.64μm
Laser Frequency
20kHz~200kHz
Focusing method
3D Dynamic Focusing System
System Support
Windows 7
Repetition Precision
0.01mm
Min.Line Width
0.5mm(1100x1100mm), 0.7mm(1500x1500mm)
Output Compatibility
Auto CAD, Photoshop, CorelDRAW etc
File Formats
PLT, DXP, BMP, JPG, AI etc
Software Character
Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting
Power Supply
380V/50Hz~60Hz
Cooling Way
Circulation of Water Cooling

2025 New Laser Marking Machine for Jeans Manufacturing Supports Ai Bmp Plt Formats Gantry Type Configuration2025 New Laser Marking Machine for Jeans Manufacturing Supports Ai Bmp Plt Formats Gantry Type Configuration2025 New Laser Marking Machine for Jeans Manufacturing Supports Ai Bmp Plt Formats Gantry Type Configuration2025 New Laser Marking Machine for Jeans Manufacturing Supports Ai Bmp Plt Formats Gantry Type Configuration2025 New Laser Marking Machine for Jeans Manufacturing Supports Ai Bmp Plt Formats Gantry Type Configuration

FAQ:
Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.
Q: What's your MOQ?
A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.
Q: Can I get discount?
A: The more you order, the more discount you will get.
Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.
Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.
