LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic

Name: LGPspeed Fast TVBacklight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic
Brand: ARGUS
Price: 82 USD

Wholesale LGPspeed Fast TV/Backlight Laser Dotting Machine CO2 Laser Engraving for Light Guide Plate Supports AI DXF PLT DWG BMP Graphic from china suppliers

laser type : CO2

working accuracy : 0.05mm

Brand Name : ARGUS

Place of Origin : Hubei, China

cnc or not : Yes

condition : New

configuration : Bench-Top

control software : sunic software

control system brand : FANUC

Cooling System : Water Cooling

feature : Programmable

graphic format supported : AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT

key selling points : High-Accuracy

mode of operation : Continuous Wave

warranty : 1 Year

Weight : 1600

Max.Marking Area : 1200x1900mm

After-sales Service Provided : Engineers available to service machinery overseas

Marking Speed : ≤4500mm/s

Laser Source : Coherent CO2 metal RF Laser Tube

Power Consumption : ≤ 7 kWh

Worktable : Synchronous transmission aluminum worktable

Laser Wavelength : 10.64μm

Laser Frequency : 20kHz~200kHz

File Formats : PLT, DXP, BMP, JPG, AI etc

Certification : ce/ISO

MOQ : 1

Price : $82,000-88,000

Contact Now

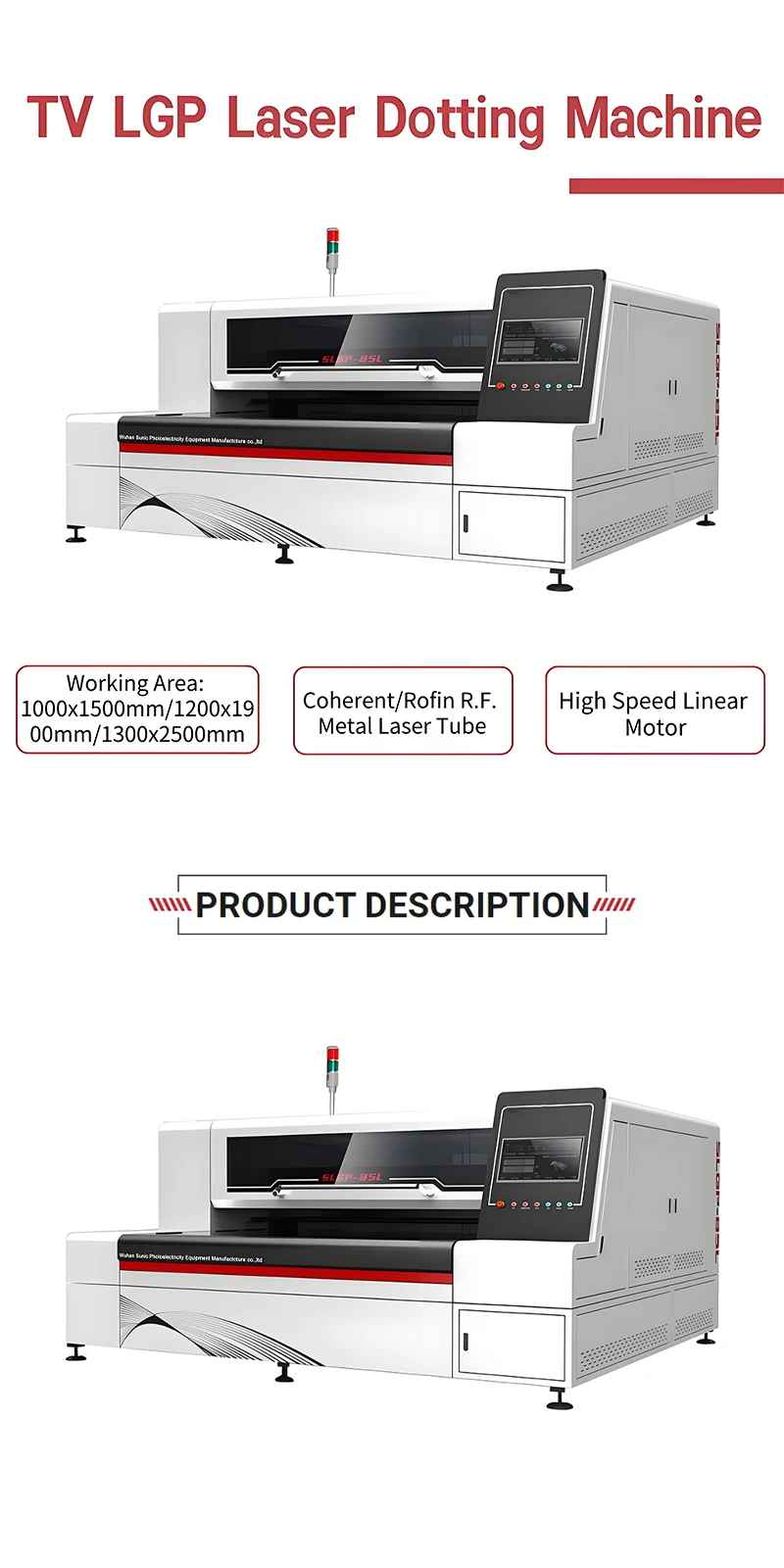

Model	SCM1015/SCM1219/SCM1325
Max working Area	10001500mm/12001900mm/1300*2500mm(optional)
Laser Output Power	240~250W(Coherent J2)
Marking Speed	≤4500mm/s
Power Consumption	≤5kWh
Laser Source	Coherent CO2 Metal RF Laser Tube
Scanner	3D Dynamic Focusing Scanner

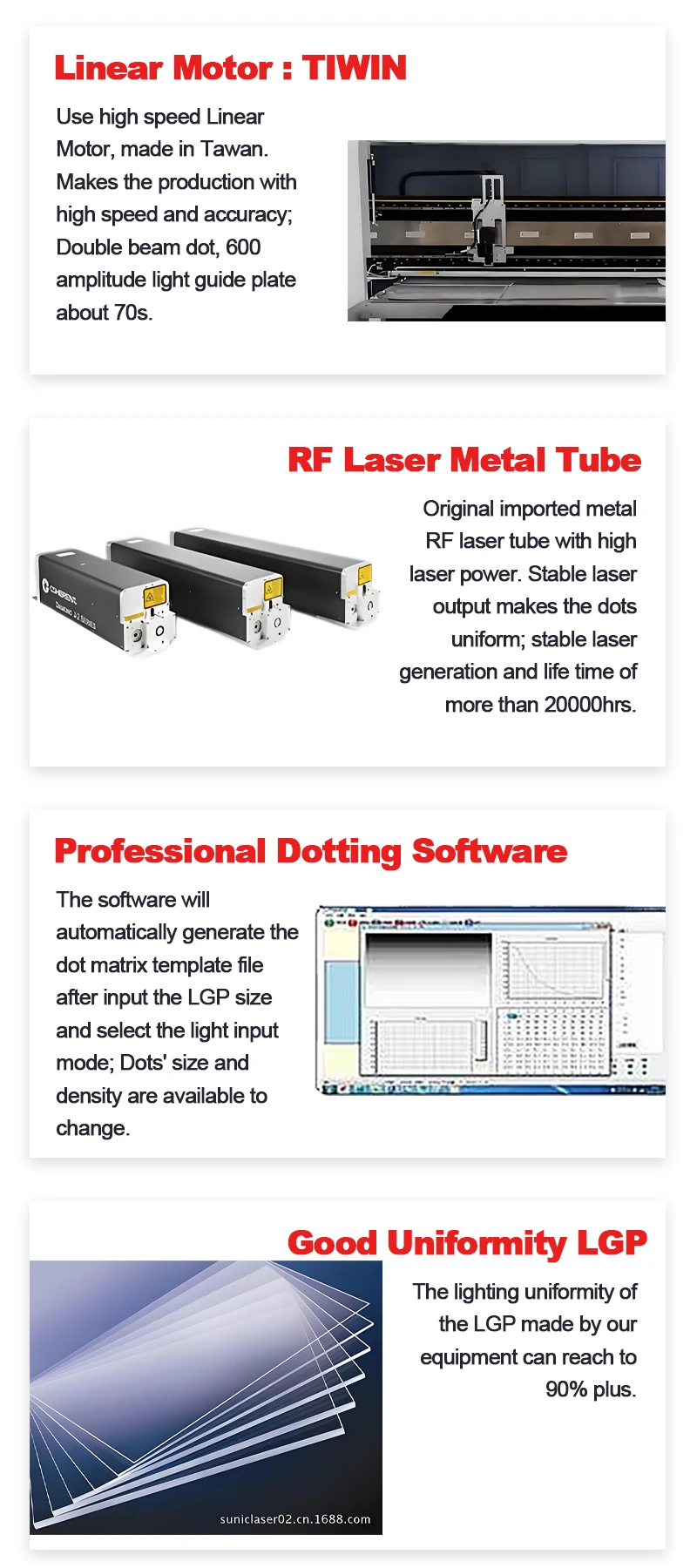

Linear Motor	HIWIN,Made in Taiwan
Optical Lens	II-VI,Singapore
Software	Sunic LGP Dotting Software
Laser Pulse Frequency	≤100KHz
Linear Guide Rail	THK Made in Japan
File Formats	PLT, DXP, BMP, JPG, AI etc
Note	1. Electricity 380V/60Hz/3 Phase/4 Wires 2. 0.6MPa Compressed Air Line 3. Distilled Water (from the bottle ) to be used the supplied chiller.

LGP Laser Dotting Machine	Screen Printing
Reflection Unit		Bump point	Plane bump
Reflective Medium		Vaporized on PMMA	Printing ink on PMMA
UV Protection/Strength		Yes / Strong	No / Weak
Surface Illumination		20% higher than printing	——
Evenness		More than 90%	About 75%
Light Transmittance		More than 95%	About 85%
Yellowing Rate		No yellowing	More than 5%
Dot Precision		0.2-0.6mm	1-2mm
Life Span		5-8 Years	2-3 Years (Ink deteriorates due to moisture)
Quality		Never fade	Gradually fade
Environmental Friendly		No pollution	Ink is easy to fall off
Shape		Can be cut to any shape	Fixed shape

FAQ:

Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.

Q: What's your MOQ?

A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.

Q: Can I get discount?
A: The more you order, the more discount you will get.

Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.

Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.
